The Beacon 3000 is an inline, multi-channel Process NIR Analyzer. It enables non-contact, real-time monitoring and closed-loop control of physical properties and chemical composition in industrial process applications.
The Beacon 3000 NIR analyzer is ideal for monitoring petroleum, chemical, and petrochemical products. Based on novel algorithms, the Beacon 3000 measures the absorption spectrum in the near-infrared (NIR) quickly and accurately without labor and material waste. The system\’s versatile software models enable soft switches between different chemistries. With the capability to monitor up to eight Flow Cells in parallel, the Beacon 3000 provides efficient, low-cost per-channel process monitoring. When integrated into a control system, the Beacon 3000 enables tighter process control and identifies process excursions before they affect yield.
Features & Benefits of Beacon-3000 NIR Analyzer

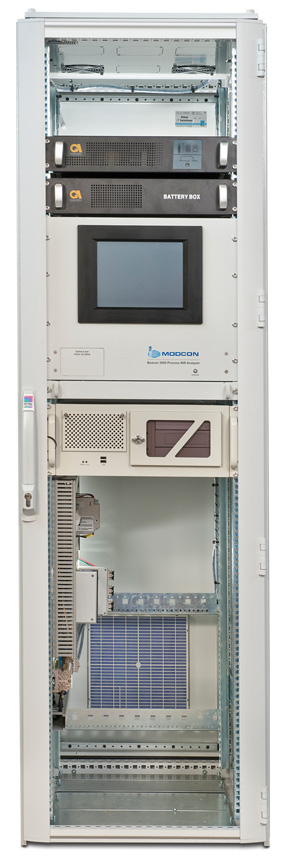

- The Main NIR Analyzer is located in the Control Room, protected from the process environment. The Main NIR Analyzer connects, via telecommunications fiber optics, to the Field Units, that are installed up to 3 km (2 miles) away, close to the process. Up to 8 Field Units can be connected to one Main Analyzer.
- The Field Unit uses no electricity and contains no moving parts. This 100% optical probe requires no explosion-proof housing or analyzer shelter. The Field Unit is certified under the ATEX Directive 94/9/EC (EN 60079-28:2007).
- In many applications, the Beacon 3000 Process NIR Analyzer’s performance and price make it an attractive alternative to traditional analyzers, such as gas chromatographs or distillation analyzers. No analyzer shelter is required, and the low maintenance requirements reduce ownership costs to a minimum.
Contact us to learn more about Beacon-3000 NIR Analyzer.
Measured properties include:
- Motor Octane (MON)
- Research Octane (RON)
- Distillation Points (IBP, T10, T50, T90, FBP)
- PIONA
- API Gravity
- Cloud Point
- Flash Point
- Pour Point
- Cetane index
- Reid Vapor Pressure
- Viscosity
- Chemical Composition
- Total Aromatics
- Total Olefins
- % Benzene
- % para Xylene
- % meta Xylene
- % ortho Xylene
- % MTBE
- % Oxygenates
- and more …
Applications
- On-Line NIR Analysis of Blended Gasoline
- On-Line NIR Analysis in Continuous Catalyst Regeneration
- On-Line NIR Analysis in Crude Distillation Unit
- On-Line NIR Analysis of Diesel
- On-Line NIR Analysis in Extraction Complex
