On-line measurement of the salt concentration in crude oil plays an important role in the crude oil chain, from the well-head until entering the crude distillation unit. The MOD-4100-S is an on-line salt-in crude oil analyzer, which is designed to provide real-time analytical data on the salt content in crude oils. Its technology correlates with ASTM D3230, an electrometric method, that determines the salt concentration in crude oil by measuring the conductivity of a sample of crude oil a mixture of xylene, and a mixed solvent of Methanol and Butanol.
The MOD 4100-S salt in crude analyzers is applied to measure the salt content in the entire crude oil chain, from the oil well, during transportation and storage, during blending, and before and after entering the desalter.
The integrated sampling handling and conditioning systems of the MOD 4100-S salt-in crude analyzers guarantee the sample enters the analyzer at the proper conditions that are required by the analyzers.
Benefits of the MOD 4100S Salt in Crude Analyzer
- Provides on-line data about the salt content at the oil well head.
- Provides on line data on the salt content prior to and after shipment.
- Provides on-line data on the salt content prior to and after blending.
- Provides on-line data of the salt content before entering, and after leaving, the desalter.
- Indicates the desalter efficiency.
- Allows on-line optimization of the desalter process conditions.
- Reduces water, chemicals, and energy consumption in the desalters.
- Real-time information on the salt content of crude oil crude oil entering the CDU.
- Reduces Corrosion, preventing plugging and fouling of pipelines.
System Configuration

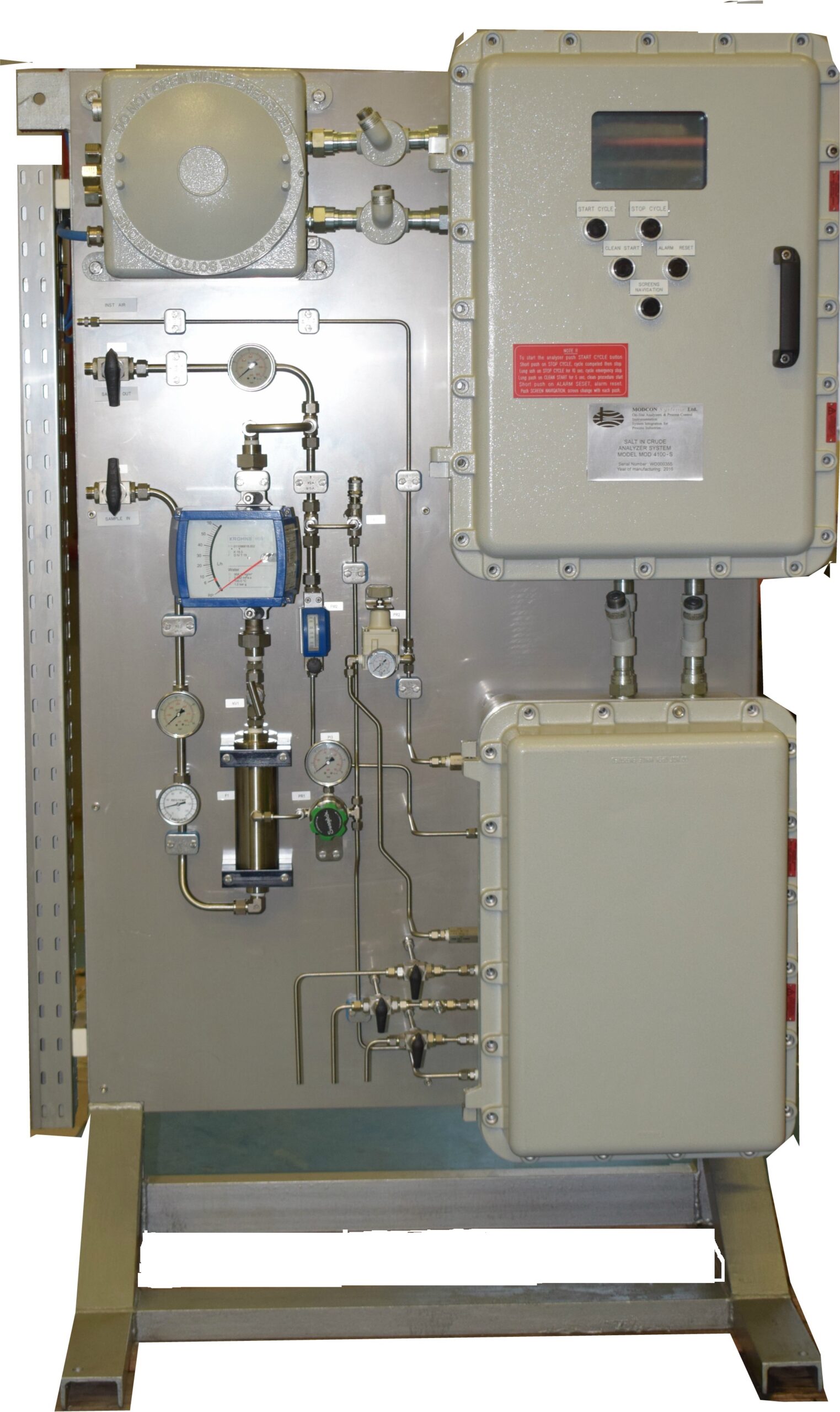

The new MOD 4100-S On-line Analytical System is a complete equipment set
- MOD-4100-S allows real-time analysis of critical crude oil properties under field conditions.
- Continuous crude oil sampling from pipelines, tanks, or process vessels, its filtration, and separation from solid particles.
- The analyzer is equipped with an integrated sampling handling and sample condition system, to bring the samples to the physical condition that is required by the analyser.
- Integrated Analyzer control system.
- Transfer of analysis results to customer’s control room DCS.
- No analyzer shelter is required
- MOD 4100-S is ATEX ExD approved for zone 1
Contact us to learn more about MOD 4100-S salt in crude analyzers
